Tuesday, October 26, 2010

Ok, all efforts have been put forth to get this thing on ebay in the next month. Spread the word, build the hype!

Monday, March 22, 2010

A little over a week ago, Disney announced the closing of the studio I work for, Image Movers Digital. Only after releasing 1 motion picture, the mouse is shutting us down.

December 30th is my end date. And I am hearing out options with what to do with my Fortress.

Obviously, destroying it is my last option. I don't have room for it at home, and can't see myself getting the exact same desk configuration at a new job.

So with that said, I'm just putting the word out there that I may be parting with it. Either selling it on ebay or finding a local nerd/comic book shop to take it off my hands. I think its too beautiful and I've put too much love and time into this.

Stay tuned, and spread the word.

Thursday, November 19, 2009

...with Jorel Hologram

I hung it with 2 fishing lines, which are connected to 2 rare earth magnets on the ceiling (I work in a converted air plane hangar, everything is steel.)


After months and months of planning, constructing, and wiring, I'm happy to report my Fortress of Solitude desk/cubicle modification is complete. Took almost 2 full days to get all the paper crystals rolled up, taped, and mounted. Since there were 3 different sizes of acrylic crystal I had to roll with a different template every time. Took much longer than I thought.

These images are WITHOUT the Jorel hologram.

I used the bottom knobs of small Sprite bottles to cap the open LEDs to give them a nice green Kryptonian tint.

photos courtesy of Michael Clemens.

Monday, November 2, 2009


After finishing the face sculpt, I baked it in my home oven, double the time the box suggested since it was over 4 boxes of Super Sculpy.

Once baked, it was ready for vaccuuform.

Never used one of those machine before, it was awesome. It shrinks around the object in a second once you flip the switch.

Here it is incased in the plastic before I cut it out.

Ir wasnt easy getting it out, once the original was free for the plastic mold, I used a Drummel tool to sand the outside edges and sculpt the back edge a little bit more.

Monday, September 28, 2009


Jorel head JUST ABOUT complete. Just need to smooth some patches, then its BAKE TIME! After its baked i'll be bringing it to work to have it vaccuuformed with clear plastic. I'll try to get some progression pictures of the vaccuuform process... i've never done it.

I've also completed 1 of the 4 panels. Its taken me more months than i assumed, but ever aspect of this project has been a learning experience.

I started by soldering all my white LEDs with resistors, then splitting them with + wire and the - wire so they would work in a string series.

It was quite a challenge holding these foundation pieces up while drilling holes for the LEDs. Since I glued the acrylic tubes on first, I had to drill from the back side.

I then plotted the course for the LEDs on the bottom side with a marker. Figured at some point it would just be a rats nest of wires, I know how I work, so i planned ahead.

Using a hot glue gun, I secured the LEDs into the holes via the back side. About 3 - 4 at a time. This was tedious work.

Fully wired, soldered, and shrink tubed... i cross my fingers and plugged it in....

I brought that one piece into work to final assembly. Works beautifully, just as I imagined it. Image below is still without paper tubes/crystals. Except for one on the left in the foreground.

And just to show how I've mounted it going AWAY from the desk...
Used metal strips with holes so i could adjust it, in the end, I just bent them to get it level. And those metal strips fit perfectly into these ridges built into the cubicle. Most of the weight is resting on the front part, sitting on the cubicle wall. Just hope we dont have an earthquake. I'll be safe, but it could get destroyed if it fell.

ONE PANEL DOWN................ THREE TO GO!

Tuesday, August 4, 2009

"...My son"

When I get tired of cutting Styrofoam, I move to the clay. I've been inching my way closer to a decent "blocking" of my Marlon Brando Jorel head. Which I will Vacuform clear plastic over, leaving a clear "hologram" Jorel mask. Just to give you an idea, here's an example I found of a clear/transparent mask.

My Jorel face will be hanging from the cieling, suspended over my monitors, hopefully reflecting and refracting the fortress crystals around it.

Image above shows most of the mass is made of foil. I'm only creating a mask, not a solid head.
The weird looking worm is the start of the hair line. His profile still not mathcing Brando's, spent most of the time on the front, now I need to work his cheeks into something a little more Brando like.

Above is the latest and greatest. Hair curl is just temp placement. The eyes I will most likely do last, since I use his ocular cavities as thumb leverage when tryin to smooth out all the lumps in the clay.

Friday, July 24, 2009

Breaking ground(ice)

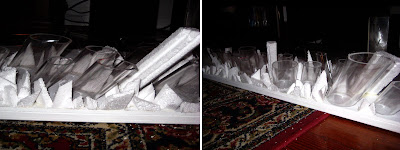

Finally started on the detail of the crystals breaking through the arctic ice. At work, I sent out an email asking for any styrofoam.. by the end of the week, I had about 3 trashbags full of non biodegradable goodness! Using a kitchen knife, I sat on the floor, and just carved for hours. Using fast holding TACKY glue to adhere the foam to the wood, I'm able to cover small portions of each panel in about 1 hour segments. Tried watching tv while doing this, and almost lost a thumb. Best to just play music.

Thursday, July 9, 2009

4th of July was a day of progress. Spent most of the day mounting and gluing the acrylic tubes to the foundation. The image above shows the 3 sizes of crystal. I started with 2, then went back to TAP PLASTICS to buy a second round of the medium and large, and figured a smaller tube would make good filler.

Here is 1 of 4 foundation pieces (the underside). They will rest on my cubicle walls. 1 piece works like a shelf, just sits on another shelf. The other 3 have to sit in a cubicle wall only i inch wide. Mostly made of cheap wood, wood glue, and screws. I was worried about sliding, so using foam window sealer as padding. (Not the cleanest screwing or glue job, i know but you wont be seeing the underside.) Then slapped a basic white coat on the sides that will show.

I've been using E6000 to mount the tubes to the wood foundation. Works like amazing. It takes about 30 minutes for the bond to hold, then you have about an hour to nudge, and adjust the angle before its too late.

I used heels of shoes to hold down the tubes while the glue drys. A shoe was the only object in my house that could hold these. Since i have 60 crystal tube mounts, I figured one at a time, by hand, would have taken forever. This way, I was able to do about 6 at a time. Using a triangle ruler made it really easy to lay down a bunch of guidelines. None of them are perfect, just eye balled matching the tube to the 45 degree line. But organic is good.

It's a shame these will all be covered by paper.
Looks cool just like this.

As of today, this is where I am. All 4 pieces of the foundation, with MOST of the tubes glued down. I have a few spare (6-8) pieces left, Once i start wiring the LEDs I may find room for 1 or two more.

The LED phase will take some time. Seeing how I've never wired anything before, I must bone up on research so i don't set this thing aflame the first time i turn the lights on. Ebay shopping for LEDs as we speak... or as i type.

Thursday, June 25, 2009

Until I get some work in progress shots, thought I would share some of my reference material.

My Fortress project will consist of 3 parts.

1) The main fortress crystals... rolled tubes of paper, slid over acrylic tubes cut at a 45 degree angle, then mounted to a wood foundation. LEDs will be placed in the acrylic mounts, with a few random green pockets of LEDs.

These 2 pictures below gave me the idea of using Styrofoam chunks for ripped up artic ice, to cover up all the construction flaws and LED sources, and adding yet another element of bad'assery.

2) The crystal console... in which Superman talks to his father, Jorel. (Which will act as a corner desk lamp.) Hoping to get an acrylic crystal made to insert into one of the console tubes.

3) And lastly, Jor'el himself. Hoping to sculpt it out of clay, then vacuform melt a sheet of clear styrene plastic (for hologram effect), while hovering over my 2 monitors, centered below the Fortress's cathedral vaulting.

*photos courtesy of www.capedwonder.com*
